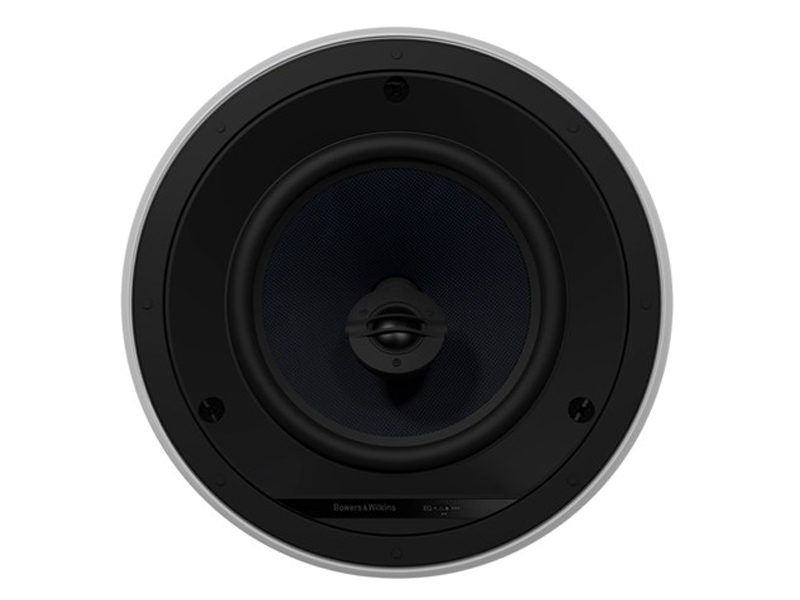

Bowers & Wilkins CI 600 Series 2-way in-ceiling system CCM683

FAST DELIVERY
Authorized Dealer
Free Shipping
$600 CAD / Each

Or as low as $16.67/month. Apply Now



Friendly, Personal, Professional Attention.
Expert, Sales, Service, Custom In-Home Installation, with On-Going Support at Guaranteed Low Prices! ….Since 1989!

Literature

Bowers & Wilkins The CCM683 features a 200mm (8in) Kevlar ® cone bass/midrange driver and a Nautilus swirl-loaded aluminium dome tweeter that pivots for adjustable off-axis treble response.

The CCM683 shares most of the high-performance features of the CCM 682, but has a slightly lower maximum amp power of 130W. Like the CCM682, this speaker comes with a 200mm (8in) Kevlar ® cone bass/midrange driver with a rigid die-cast chassis, a Nautilus swirl-loaded aluminium dome tweeter that pivots for adjustable off-axis treble response, and a three-position EQ switch.



Feature
Description 2-way in-ceiling system
Drive Units1x ø25mm (1 in) Nautilus™ swirl loaded aluminium dome tweeter, 1x ø200mm (8in) blue Kevlar® cone bass/midrange
Frequency Range (-6dB) 35Hz – 50kHz
Recommended Amp Power 25 – 130w
Sensitivity SPL (2.83V, 1m) 88dB
Impedance Nominal (min) 8Ω (4.5Ω)
Frame diameter 290mm (11.4in)
Cut-out diameter 250mm (9.8in)
Depth behind surface 133mm (5.2in)
Protrusion 4mm (0.2in)

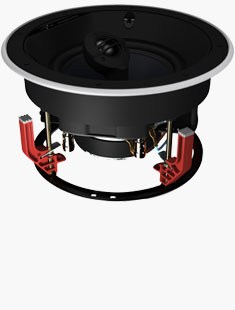

Pre-mount Kit C8
Back Box 6C
