Enjoy accurate audio reproduction that’s faithful to the original recording. Thanks to technologies like Advanced AL32 Processing Plus and an ultra-precision D/A Converter, you’ll hear your favorite songs like never before. The Denon original drive mechanism with S.V.H lets you play back CDs, SACDs, and your own compilations on DVD R/RW with signal purity.
Extended format capability
Supports CD, Super Audio CD, and your own high-res compilations on CD or VDR/ RW
Pristine audio
Unique Denon technologies come together to deliver outstanding sound clarity.
Faithful, detailed playback
Advanced AL32 data interpolation algorithms and digital filtering reveal more detail from the original recording.
Build integrity
Built to last with thoughtfully selected components and rigorous testing.
Advanced AL32 Processing Plus
Experience audio beautifully faithful to the original sound. Advanced AL32 Processing Plus algorithms restore information that was lost during the digital recording.
Extended disc format support
Enjoy extended disc support for your high-resolution audio collection, including CD's, Super Audio CDs,s well as DSD and high-res files up to 192 kHz/24 bits recorded on DVD-R/RW and DVD+R/RW discs.
Proprietary disc drive
The Denon original disc drive is built with a high-class S.V.H (Suppress Vibration Hybrid) mechanism. All elements of the design are focused on delivering optimal accuracy.
Sound Master tuned
Carefully tuned with selected audio components and evaluated by the Denon Sound Master to meet Denon’s high standards and distinctive sound for an amazing experience.
DETAIL VIEW

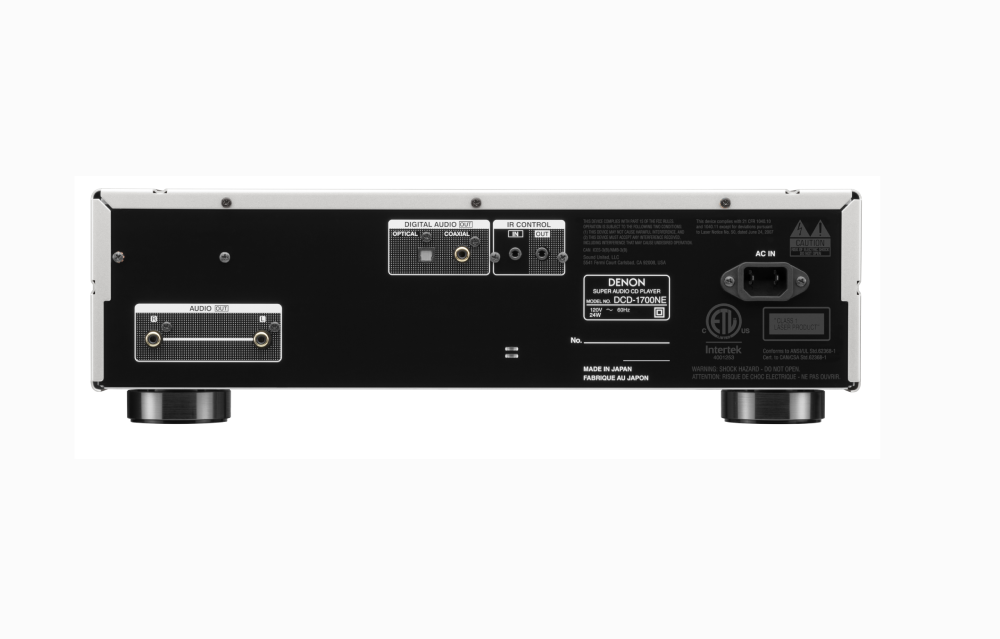

BACK PANEL
Other | |
---|---|
Auto Standby Mode | Yes |
Power Cord | Yes |
Other | Stereo RCA Cable x1 |
Timer Play (Need external audio timer) | Yes |
Remote Control | Yes (controllable PMA-1700NE) |
Battery | Yes (AAA x2) |
Remote Control Bus Terminal | Yes |
Pure Direct Mode | Yes |
Last Function Memory | Yes |
CONTROLS | |
Control with App via Network Player (Use Remote Control Bus) | Yes |
LED | POWER: 1 Green |
Front Panel Display | Single Line |
Dimmer for Front Display | Bright / Dim / Dark / Off |
INPUTS/OUTPUTS | |
Coaxial input / output (Maximum Support) | 0 / 1 |
CONTROLS | |
Remote Controller | System Remote (Amp and CD Player Control) |
On-Product Buttons | Power, Disc Layer,Pure Direct, Play/Pause, Stop, Fwd/Rev, Open/Close |
INPUTS/OUTPUTS | |
Optical input / output (Maximum Support) | 0 / 1 |
Disc | |
Firmware Update | Yes(FE/BE, MCU) |
INPUTS/OUTPUTS | |
Fixed Analog Output (RCA) | Cinch x 1 (Gold Plated) |
Disc | |
Playability of files recorded on DVD R/RW : MP3 / WMA / AAC / WAV / FLAC / ALAC / AIFF / DSD (DIFF / DSF) | Yes / Yes / Yes / Yes (~192kHz/24bit) / Yes (~192kHz/24bit) / Yes (~96kHz/24bit) / Yes (~196kHz/24bit) / Yes(~5.6MHz) |
Playability of files recorded on CD-R/RW : MP3 / WMA / AAC / WAV / FLAC / ALAC / AIFF | Yes / Yes / Yes / Yes (~48kHz/24bit) / Yes (~48kHz/24bit) / Yes (~48kHz/24bit) / Yes (~48kHz/24bit) |
SUPER AUDIO CD TEXT | Yes |
SACD | Yes (Stereo Layer/Multi-D/M) |
Disc Type | SACD/CD/CD-R/CD-RW DVD-R/+R/-RW/+RW |
Mechanism | TD-505 FOR DM |
Digital Audio | |
DAC Master Clock Design (Not Support Network Playback) | Yes |
Digital Processing | Advanced AL32 Processing Plus |
Digital Filter | Fixed |
DAC Circuit | TI Advanced Current Segment PCM1795(192k/32bit) ×1 |
Specifications | |
Line Output Level | 2.0Vrms (10kohm) |
S/N | SACD: 119dB, CD: 117dB |
Dynamic Range | SACD: 112dB, CD: 101dB |
Harmonic distortion | SACD: 0.0010%, CD: 0.0016% |
Frequency Response | SACD:2Hz - 50kHz (-3dB) , CD:2Hz - 20kHz (-0.5dB) |
GENERAL | |
Power button | Aluminum |
Open / Close button | Aluminum |
Function button | Aluminum |
Front (Center) Panel | Aluminum |
at Standby | 0.1W |
Power Consumption | 24W |
Packaging gross weight | 11.7kg |
Packaging Dimensions (W x H x D mm) | 543 x 250 x 515 |
Net weight | 9.0kg |
Cabinet Size | 434 x 135 x 374 |
Unit (W x H x D mm) | 434 x 135 x 384 |
