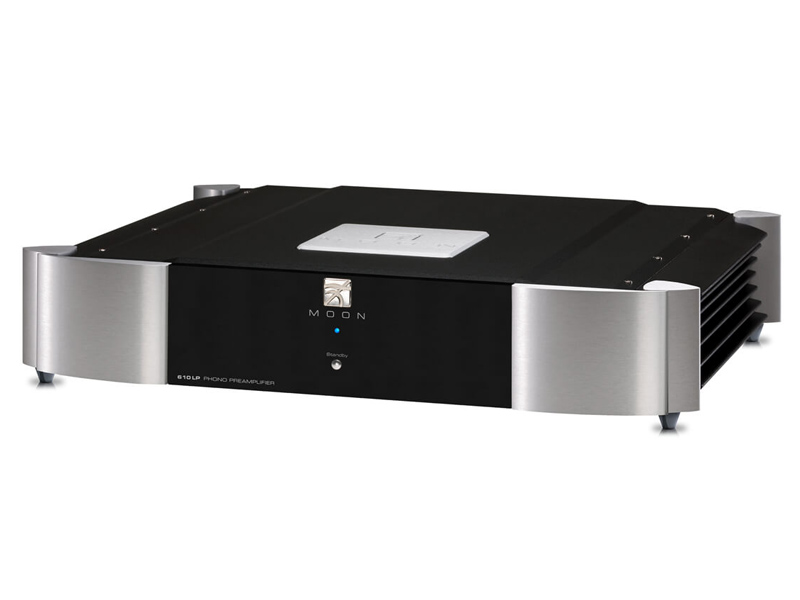

Simaudio 610LP Phono Preamplifier (2-Tone) - 610LP Phono Preamp (2-Tone)
Or as low as $277.78/month over 36 months. Literature
Design features
- Power supply voltage regulation includes i 2 DCf (Independent Inductive DC Filtering); 1 inductor for each and every IC in the audio circuit’s signal path – 24 stages in all.
- 64 impedance loading settings from 12.1Ω to 47kΩ.
- 16 capacitance loading settings from 0pF to 1120pF.
- 16 gain level settings from 40dB to 70dB.
- Selectable equalization curves for RIAA and IEC standards.
- Fully compatible with 820S external power supply.
- Customized parts include metallized polypropylene film capacitors with very tight tolerances of 1%.
| Specifications | |
|---|---|

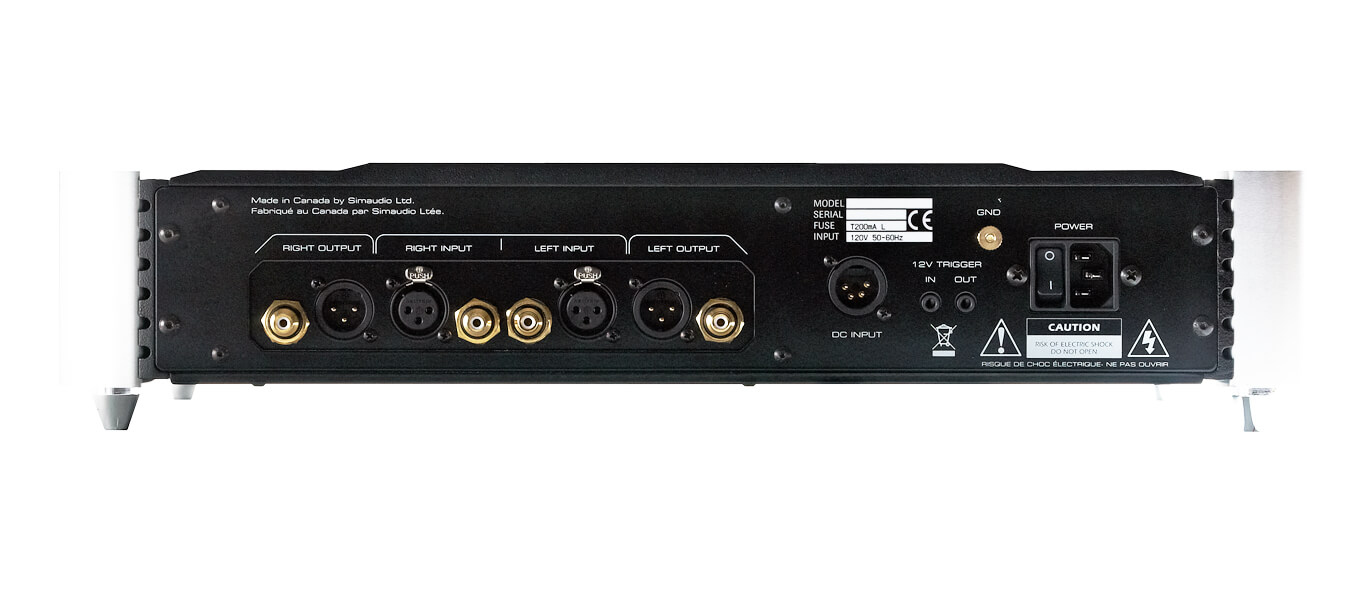

| Inputs (XLR / RCA) | 1 pair / 1 pair |
| S/N Ratio (full scale @40dB gain) | 112dBr |
| S/N Ratio (full scale @70dB gain) | 93dBr |
| IEC Curve Effect | -7dB @ 10Hz |
| Frequency response | 20Hz - 20kHz ±0.1dB |
| Crosstalk @ 1kHz | -106dB |
| Output impedance | 50Ω |
| THD (20Hz - 20kHz) | 0.001% |
| Intermodulation distortion | 0.002% |
| Input overload @40dB gain (XLR / RCA) | 200V RMS / 100V RMS |
| Input overload @70dB gain (XLR / RCA) | 5mV RMS / 2.5mV RMS |
| Shipping weight | 40 lb / 18 kg |
| Dimensions (width x height x depth) | 18.75 x 4.0 x 16.8 in |
