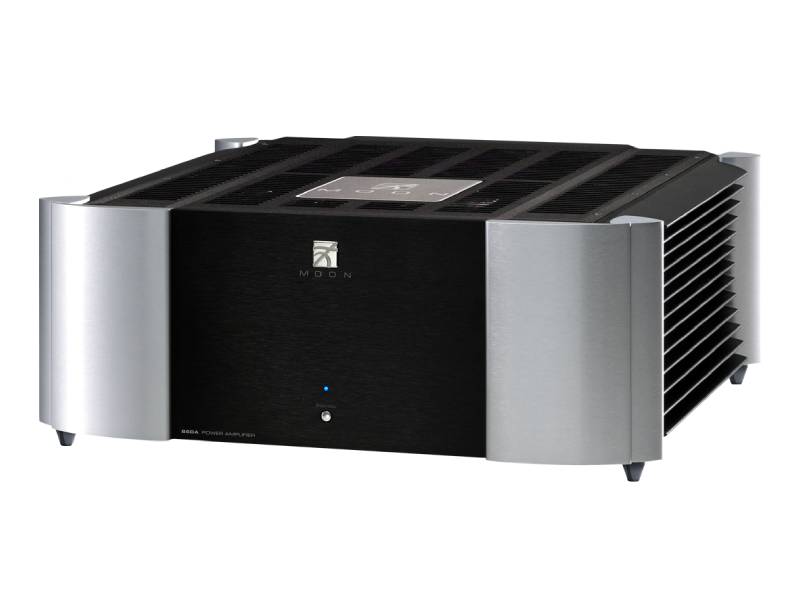

Moon by Simaudio Dual-Mono Reference Two-Channel Power Amplifier - 860A v2 (2-Tone)
Or as low as $694.44/month over 36 months. Literature
Exceptional transparency
The MOON 860A v2 Power Amplifier is a balanced differential dual-mono Power Amplifier that provides both exceptional transparency and a remarkable musical soundstage.
A true evolution
A true evolution on earlier designs, and incorporates trickle-down technologies from the massive 888 Power Amplifier.
225W per channel
450W at 4 Ω and 750W in monaral mode
Design features
- Monaural operation via rear-panel switch.
- DC-coupled design with DC-servo control for greatest transparency.
- Switchable AC-coupling for best match with a variety of preamplifiers.
- Output stable into any load impedance.
- Class A power output up to 5 watts.
- Very high damping factor for superior musical dynamics, speaker control and refined harmonic accuracy and timbre.
| Specifications | |
|---|---|
| Output Power at 8Ω | 225 W per channel |
| Output Power at 4Ω | 450 W per channel |
| Output Power - Monaural mode at 8Ω | 750 W |
| Input Sensitivity | 1.2V |
| Input Impedance | 47,500Ω |
| Gain | 31dB |
| Signal-to-noise Ratio | 110dB @ full power |
| Frequency response (full range) | 10Hz - 100kHz +0/-3.0dB |
| Crosstalk @ 1kHz | -110dB |
| THD (20Hz - 20kHz @ 1 W) | 0.005% |
| THD (20Hz - 20kHz @ 200 W) | 0.03% |
| Intermodulation distortion | 0.006% |
| Power Supply Capacitance | 240 000 uF |
| Shipping weight | 90 lb / 40 kg |
| Dimensions (width x height x depth) | 18.75 x 7.5 x 17.5 in 47.6 x 19.2 x 44.5 cm |
