Moon by Simaudio Evolution Stereo Amplifier - 760A Power Amp (2-Tone)
Or as low as $277.78/month over 36 months. Literature
Design features
- Our “no overall feedback” amplifier circuit design which results in the following: real-time amplification; more accurate musical reproduction with respect to tonality; non-existent transient intermodulation distortion; the elimination of common phase errors resulting from feedback.

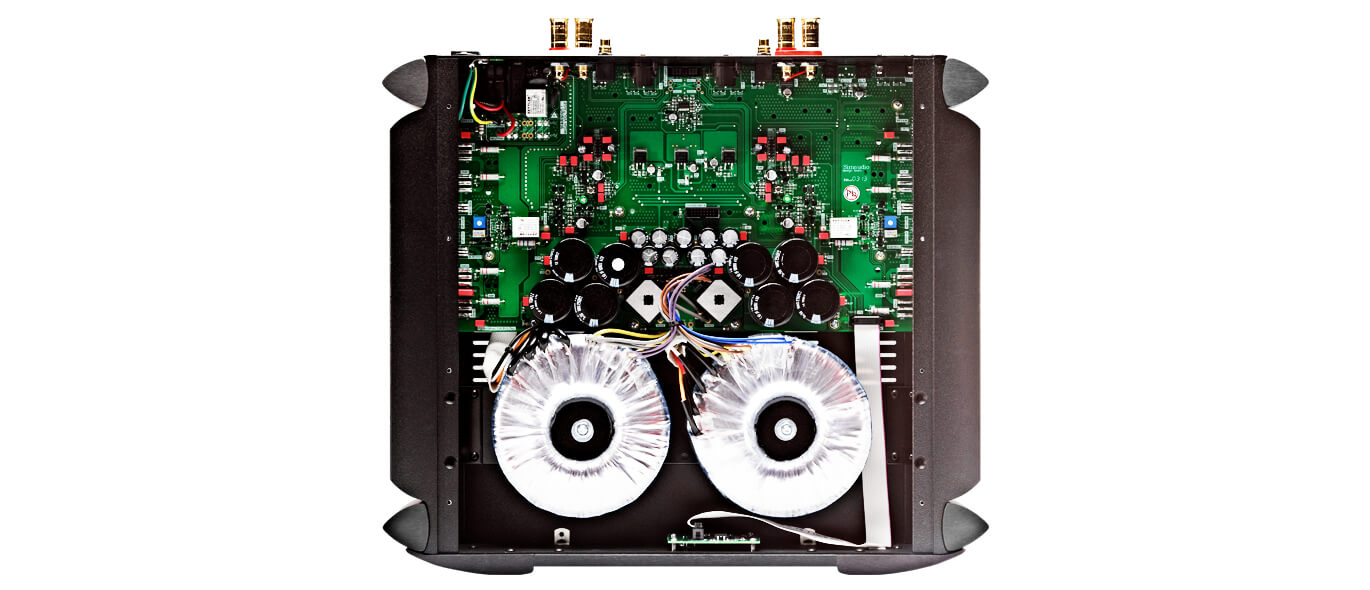

- An oversized dual-mono power supply using a custom proprietary toroidal transformer design.
- “Class A” power output to 5 watts for greater efficiency.

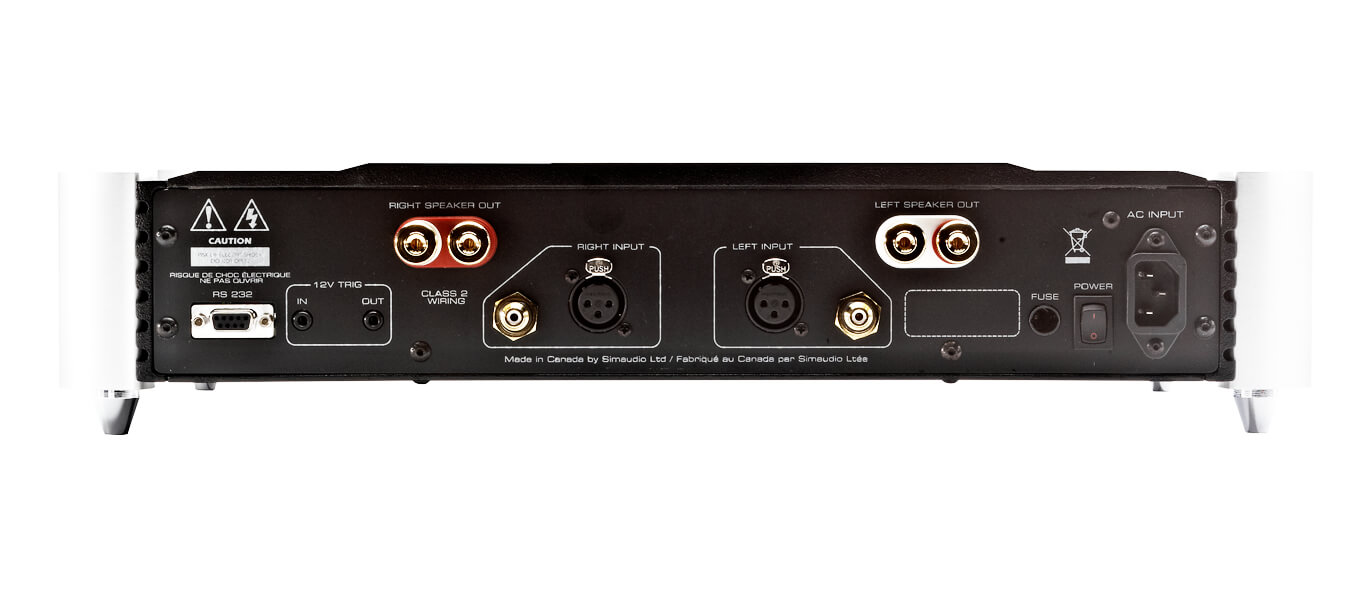

- Full unsolicited RS-232 bidirectional feedback and 12 Volt trigger input/output for remote operation.
- Self-diagnostic system that detects both over-heating and the presence of DC in the input signal.
| Specifications | |
|---|---|
| Output Power at 8Ω | 130 W per channel |
| Output Power at 4Ω | 260 W per channel |
| Output Power - Bridged Mono at 8Ω | 500 W |
| Input Sensitivity | 900mV RMS |
| Input Impedance | 47,500Ω |
| Gain | 31dB |
| Signal-to-noise Ratio | 104dB @ full power |
| Frequency response (full range) | 10Hz - 200kHz +0/-3.0dB |
| Crosstalk @ 1kHz | -102dB |
| THD (20Hz - 20kHz @ 1 W) | 0.015% |
| THD (20Hz - 20kHz @ 130 W) | 0.04% |
| Intermodulation distortion | 0.01% |
| Shipping weight | 45 lb / 20 kg |
| Dimensions (width x height x depth) | 18.75 x 4.0 x 18.1 in |
