Moon by Simaudio Moon Evolution Line Preamplifier - 850P Pre-Amp (2-Tone)

Moon by Simaudio Moon Evolution Line Preamplifier - 850P Pre-Amp (2-Tone)

FAST DELIVERY
FAST DELIVERY
Authorized Dealer
Free Shipping
$45000 CAD / Each
Call Now For Best Price (705) 445-1118

Or as low as $1250.00/month. Apply Now

Authorized Dealer
Free Shipping
$45000 CAD / Each
Call Now For Best Price (705) 445-1118

Or as low as $1250.00/month. Apply Now



Friendly, Personal, Professional Attention.
Expert, Sales, Service, Custom In-Home Installation, with On-Going Support at Guaranteed Low Prices! ….Since 1989!


Friendly, Personal, Professional Attention.
Expert, Sales, Service, Custom In-Home Installation, with On-Going Support at Guaranteed Low Prices! ….Since 1989!
Literature

The ultimate analog preamplifier
“It’s the most transparent preamp – or audio component of any sort – that I’ve heard.”
– Brian Damkroger, Stereophile

Our most advanced preamplifier to date
“This is a rare component in the way it disappears, revealing nothing but the music carried through it. I’ve yet to hear one that reveals more music.”

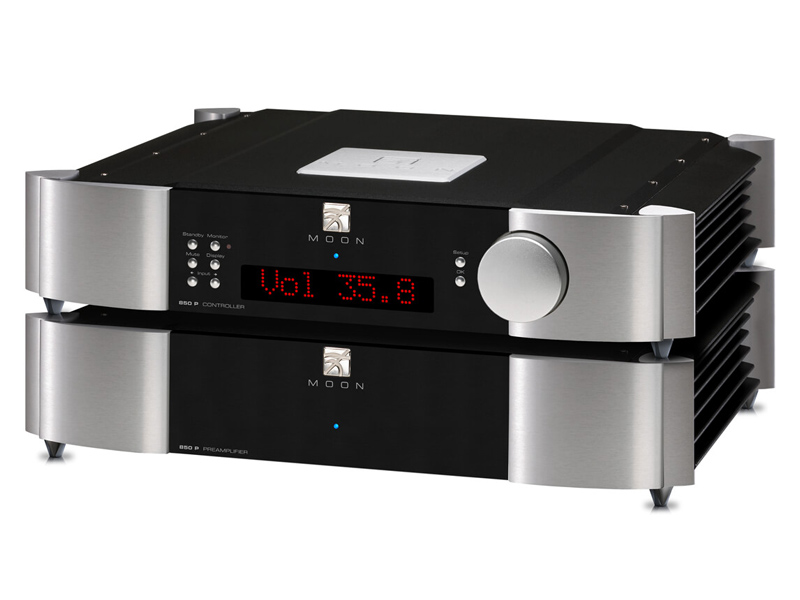

Sophisticated two chassis design

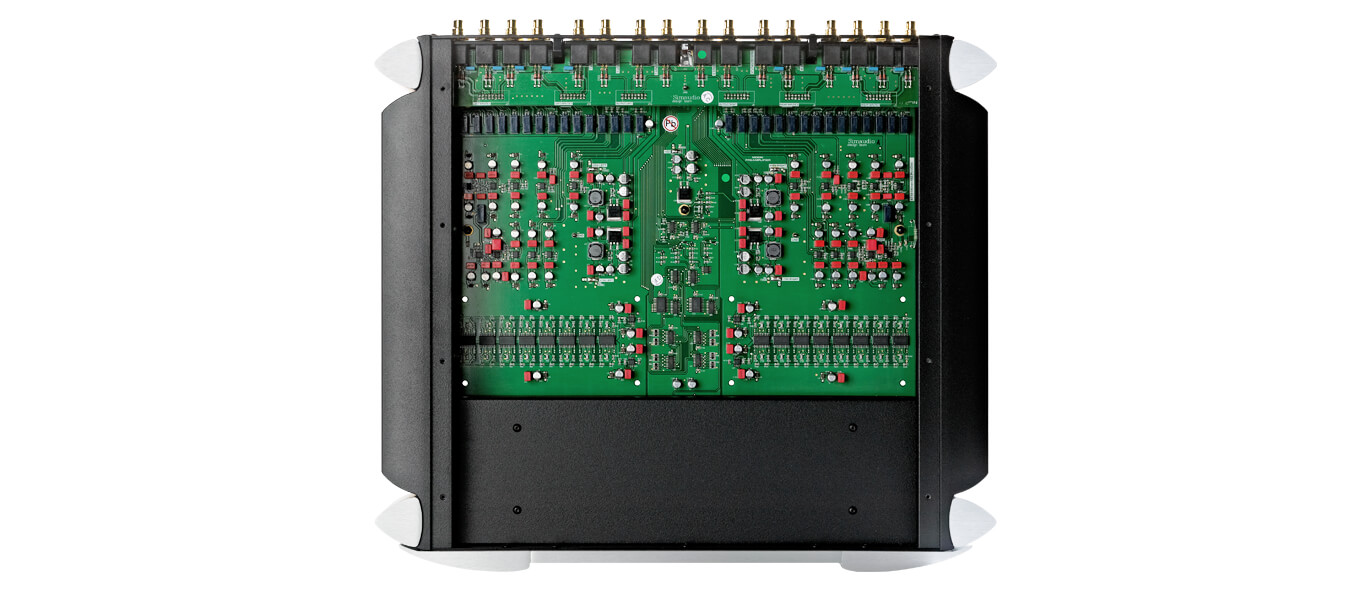

The audio circuits are isolated within a second box for better signal accuracy.

Suspension for complete microphonic annihilation
giving incredibly lifelike natural sound.

Design features

  • 2-chassis design with 1 chassis housing the power supply, digital controller circuitry, software processing & the LED display. The other chassis contains ONLY audio circuitry.
  • Power supply voltage regulation includes i 2 DCf (Independent Inductive DC Filtering); 1 inductor for each and every IC in the audio circuit’s signal path – 40 stages in all.
  • Gain offset adjustment of ±10dB for each line input.
  • Each line input is fully configurable to be “home theater ready”, whereby the 850P’s volume control is bypassed.
Specifications

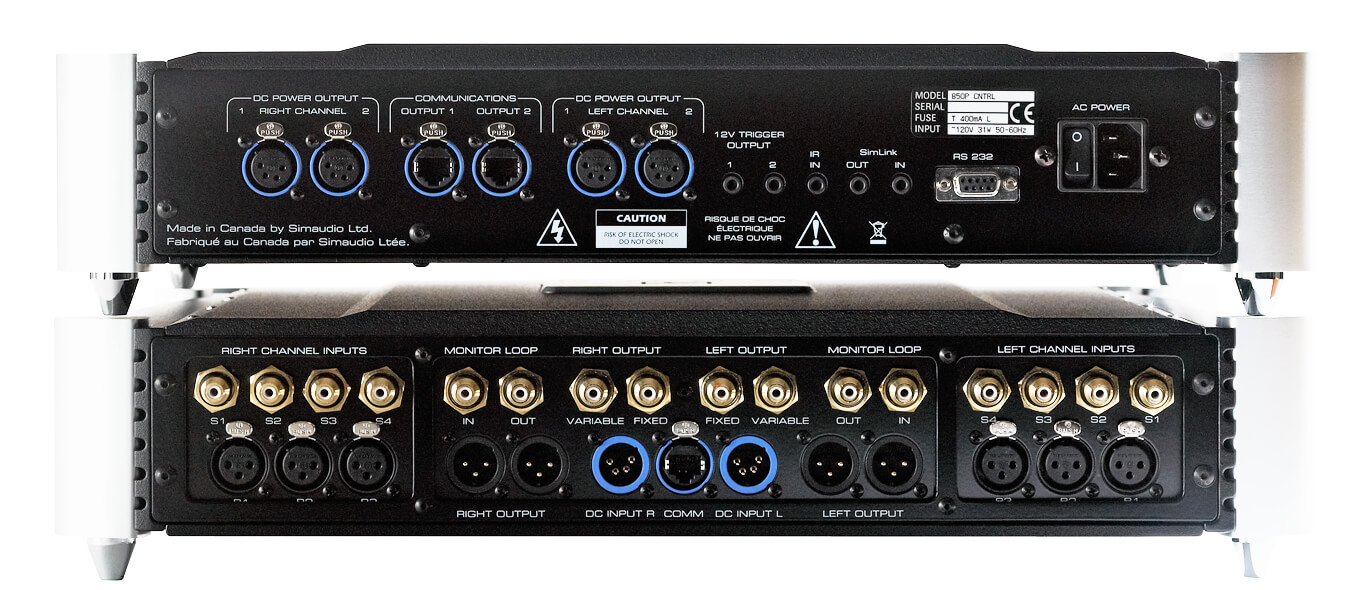

Number of inputs - XLR / RCA 3 pairs / 5 pairs
Input Sensitivity 200mV - 4.0V RMS
Input Impedance 11,000Ω
Gain 9dB
Number of Outputs - XLR / RCA 2 pairs / 2 pairs (fixed + variable)
Signal-to-noise Ratio (20Hz-20kHz) 130dB @ full output
Frequency response 5Hz - 100kHz ±0.1dB
Crosstalk @ 1kHz -130dB
Output impedance 50Ω
THD (20Hz - 20kHz) 0.0005%
Intermodulation distortion 0.0001%
Shipping weight 151 lb / 67 kg
Dimensions - each chassis (w x h x d) 18.75 x 4.0 x 16.5 in
