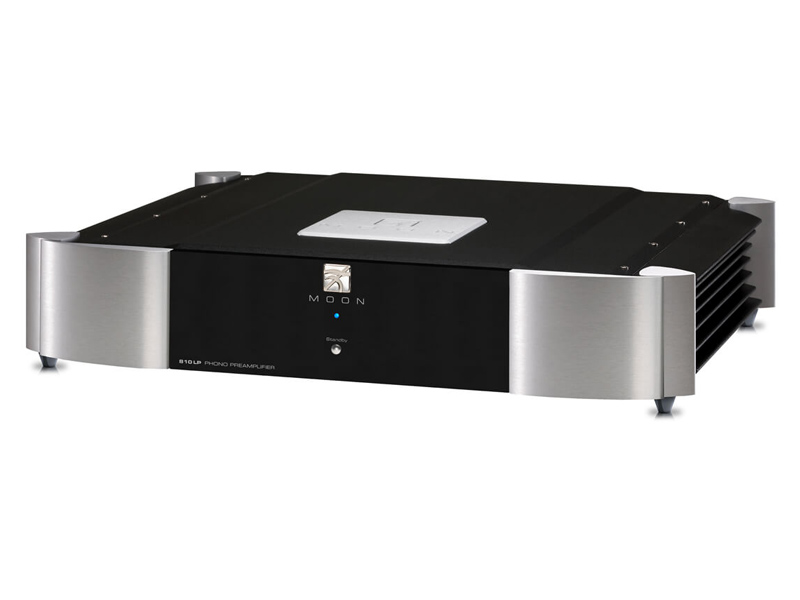

Moon by Simaudio Moon Evolution Phono Preamplifier - 810LP Phono Preamp (2-Tone)

Moon by Simaudio Moon Evolution Phono Preamplifier - 810LP Phono Preamp (2-Tone)

Moon by Simaudio Moon Evolution Phono Preamplifier - 810LP Phono Preamp (2-Tone)
Moon by Simaudio Moon Evolution Phono Preamplifier - 810LP Phono Preamp (2-Tone)
Moon by Simaudio Moon Evolution Phono Preamplifier - 810LP Phono Preamp (2-Tone)
FAST DELIVERY
FAST DELIVERY
Authorized Dealer
Free Shipping
$16000 CAD / Each
Call Now For Best Price (705) 445-1118

Or as low as $444.44/month. Apply Now

Authorized Dealer
Free Shipping
$16000 CAD / Each
Call Now For Best Price (705) 445-1118

Or as low as $444.44/month. Apply Now



Friendly, Personal, Professional Attention.
Expert, Sales, Service, Custom In-Home Installation, with On-Going Support at Guaranteed Low Prices! ….Since 1989!


Friendly, Personal, Professional Attention.
Expert, Sales, Service, Custom In-Home Installation, with On-Going Support at Guaranteed Low Prices! ….Since 1989!
Literature

Design features

  • Power supply voltage regulation includes i 2 DCf (Independent Inductive DC Filtering); 1 inductor for each and every IC in the audio circuit’s signal path – 24 stages in all.

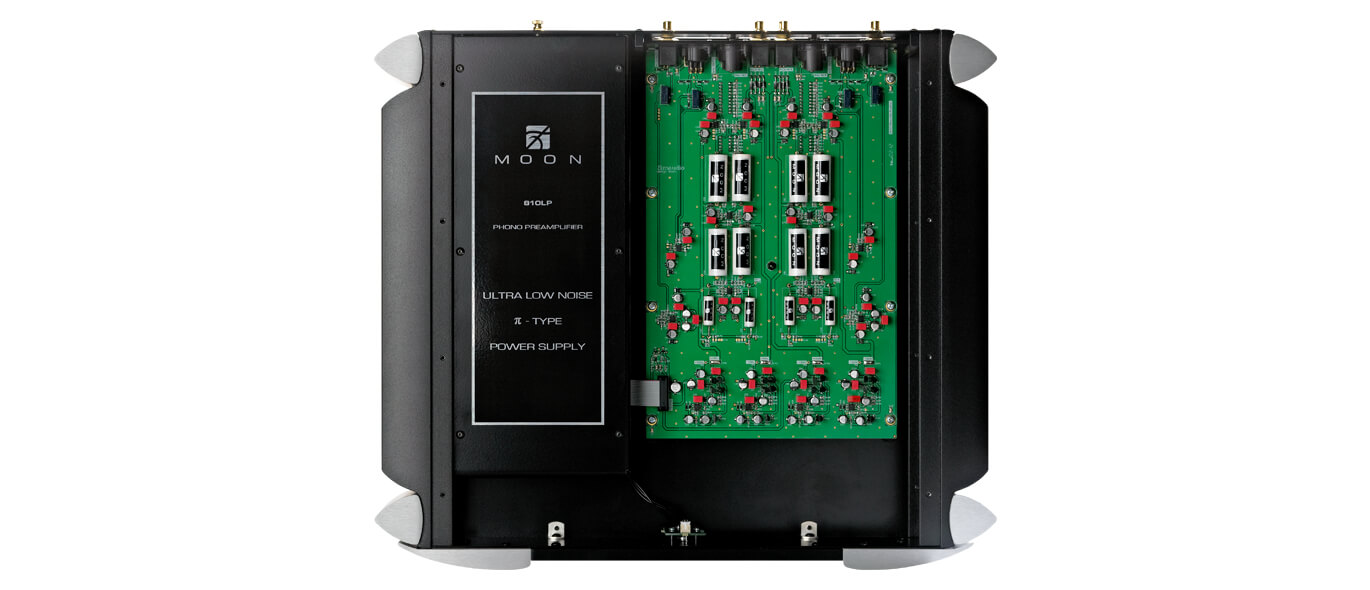

  • The dedicated audio circuit board is mounted on a 5-point gel-based floating suspension, derived from our M-Octave technology, originally developed for our reference 850P Preamplifier.
  • Fully compatible with 820S external power supply.
  • Customized parts include metallized polypropylene film capacitors with very tight tolerances of 1%.
  • Four-layer PCB tracings with dedicated ground and power planes using pure copper for low impedance characteristics.
Specifications

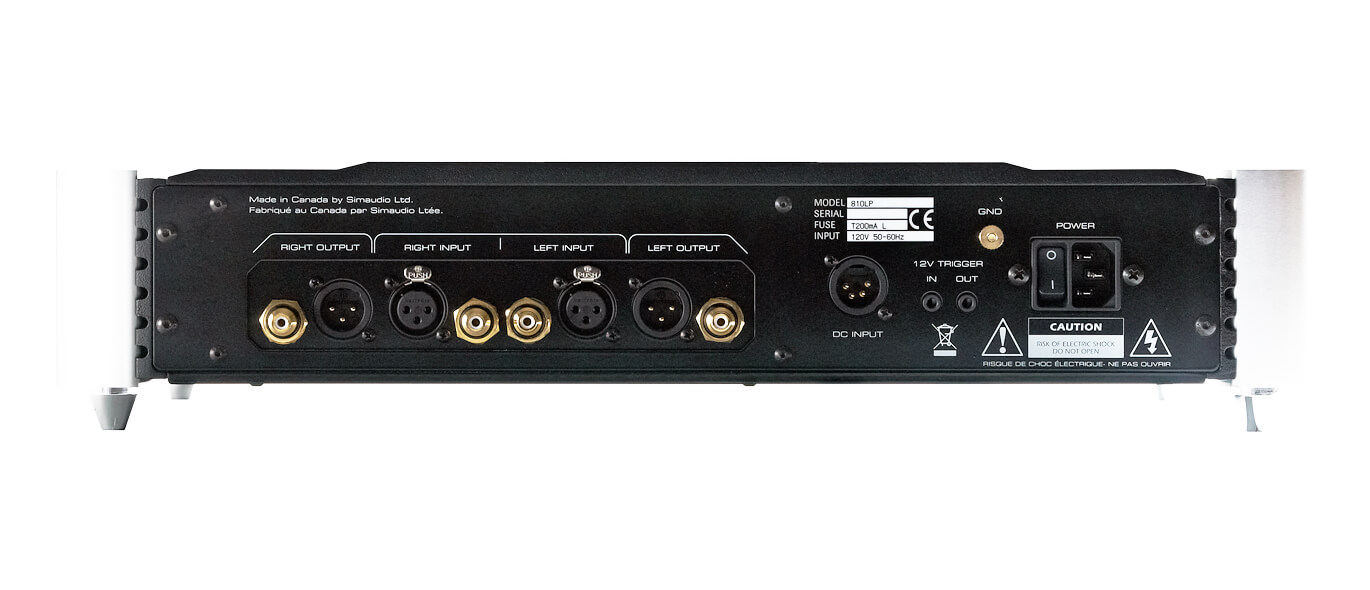

Inputs (XLR / RCA) 1 pair / 1 pair
S/N Ratio (full scale @40dB gain) 115dBr
S/N Ratio (full scale @70dB gain) 95dBr
IEC Curve Effect -7dB @ 10Hz
Frequency response 20Hz - 20kHz ±0.1dB
Crosstalk @ 1kHz -106dB
Output impedance 50Ω
THD (20Hz - 20kHz) 0.0008%
Intermodulation distortion 0.001%
Input overload @40dB gain (XLR / RCA) 200mV RMS / 100mV RMS
Input overload @70dB gain (XLR / RCA) 5mV RMS / 2.5mV RMS
Shipping weight 40 lb / 18 kg
Dimensions (width x height x depth) 18.75 x 4.0 x 16.8 in
