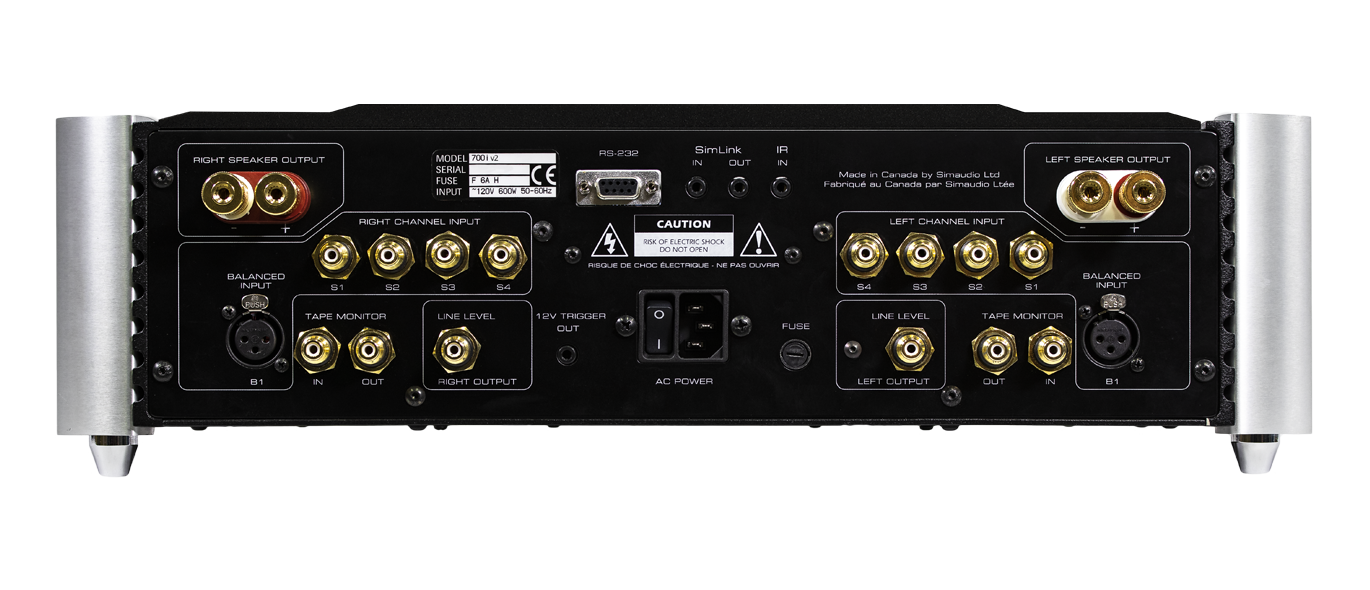

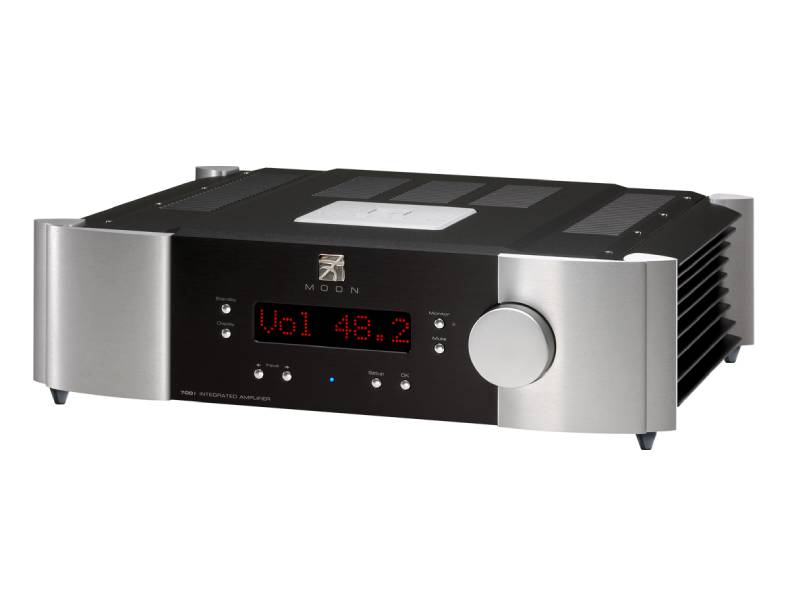

Moon by Simaudio Two Channel Integrated Amplifier - 700iv2 (2-Tone)
Or as low as $550.00/month over 36 months. Literature
Feature rich: input labelling, gain offset
Design features
- Our “Lynx” Technology eliminates the global feedback loop and results in the following: more accurate musical reproduction with respect to tonality; the elimination of common phase errors resulting from feedback.

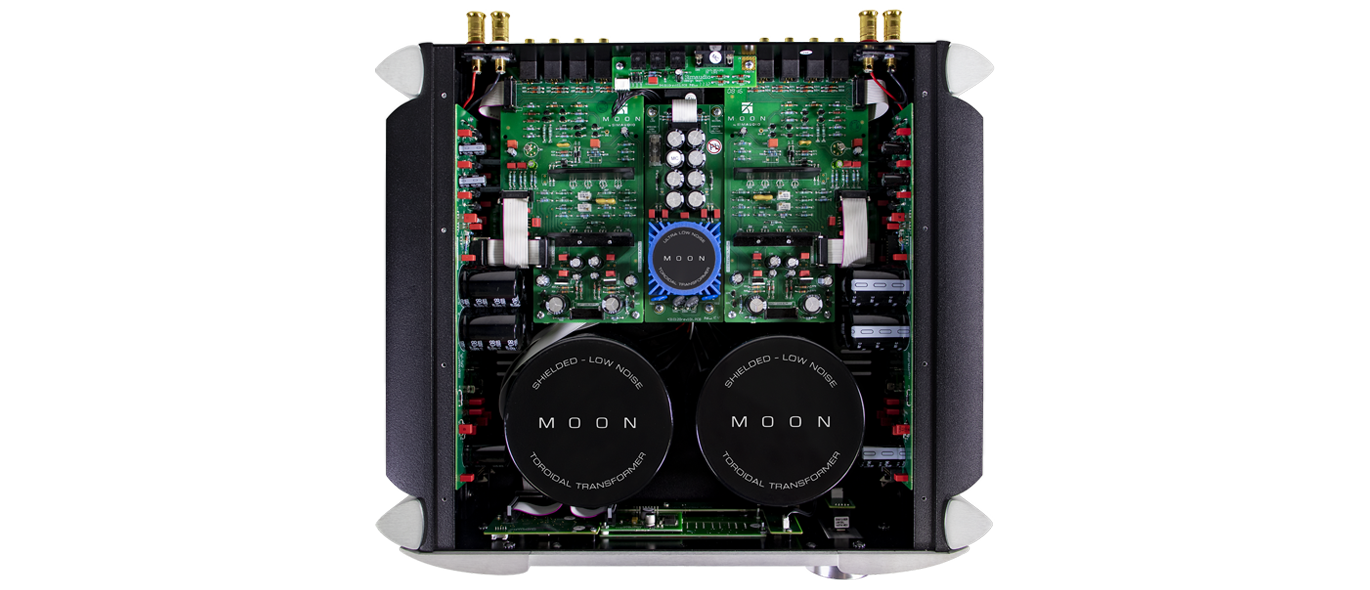

- An oversized dual-mono power supply.
- “Class A” power output to 5 watts for greater efficiency.
- Gain offset adjustment of ±10dB for each input.
- Any input is configurable to become a “bypass input”, whereby the 700i v2’s volume control is bypassed, permitting a plethora of applications including usage in a home-theater environment.
| Specifications | |
|---|---|
| Output Power at 8Ω | 175 W per channel |
| Output Power at 4Ω | 350 W per channel |
| Input Impedance | 23 700 Ω |
| Inputs (RCA / XLR) | 4 pairs / 1 pair |
| Monitor Loop (RCA) | 1 pair |
| Gain | 37 dB |
| Frequency response (full range) | 10Hz - 100kHz +0/-0.1dB |
| Crosstalk @ 1kHz | -100 dB |
| THD (20Hz - 20kHz @ 1 W) | 0.015 % |
| THD (20Hz - 20kHz @ 175 W) | 0.04 % |
| Intermodulation distortion | 0.02 % |
| Shipping weight | 62 lb / 28 kg |
| Dimensions (width x height x depth) | 18.75 x 5.5 x 18.1 in 47.6 x 14.0 x 46.0 cm |
