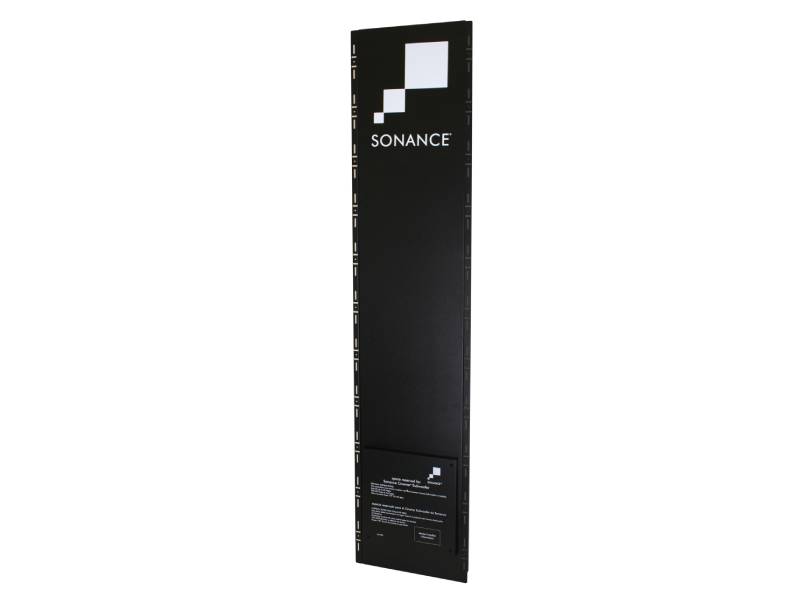

Reference In-Wall Subwoofer Enclosures
Feature a combination of 1/2" and 1" MDF materials for superior isolation of bass; extruded aluminum bracing for minimal obstruction of airflow inside the enclosure; mass damping of front and back walls of enclosure; long-strand fiberglass internal damping for standing wave dissipation; dual positive and negative terminals for maximum wire connectivity; floating enclosure design minimizes vibration transfer to adjoining rooms; fits in standard 2x4 stud bay; blank pre-construction plate for easy installation
| Specifications | |
|---|---|
| Internal Volume | 1.20 cubic feet (34.3 liters) of volume |
| Material | MDF wood box with long strand fiberglass acoustic dampening material |
| Compatibility | For use with R12SUB only |
| Enclosure Dimensions (WxHxD) | 14 1/4" x 70 7/8" x 3 7/16" (362mm x 1800mm x 87mm) |
| Mounting Depth | 3 3/8” (85.7mm) |
| Mounting Bracket Width | 16 1/4” (409.5mm) |
| Hardware | Integrated L-bracket mounting system included |
| Shipping Weight | 79 lbs |
