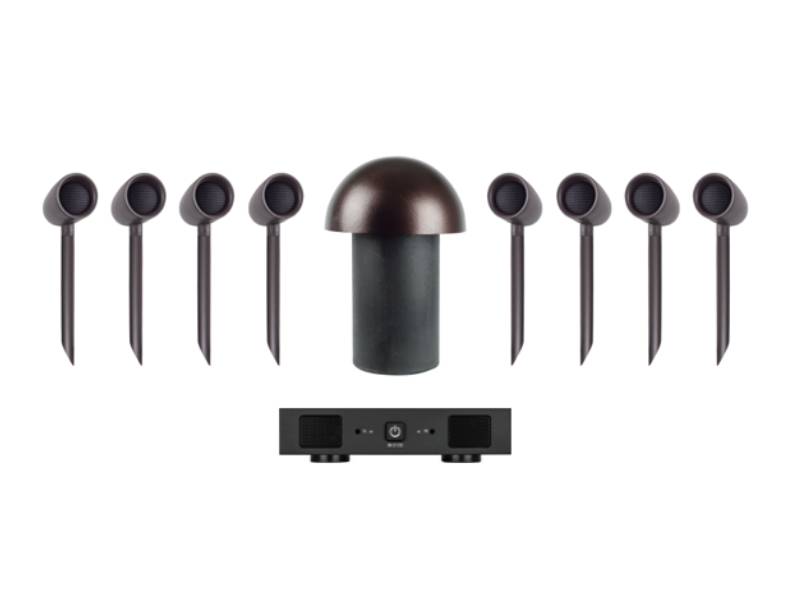

Authorized Dealer Sonance Sonarray SR1 System With Subwoofer And Amplifier(Each) - 93134
| Specifications | |
|---|---|
| Woofer | 1 ea - 8" (203mm) dual voice coil, polyproylene cone & Santoprene™ surround |
| Satellite | 8 ea - 3 1/2" (89mm) anodized aluminum cone & Santoprene™ surround |
| Frequency Response | 40Hz - 20kHz ±3dB |
| Impedance | 8 ohms per channel nominal |
| Dispersion | 60º dispersion with an optimum listening area 8'-20' (2.4-6.1 meters) from the satellites |
| Power Handling | 50 watts minimum; 150 watts system |
| Sensitivity | 85dB and 89dB SPL, satellite and subwoofer respectively, 2.83V / 1 meter |
| Enclosure Material | Satellites - Non-corroding, high-heat ABS sealed enclosures; Woofer - High density Polyethylene (HDPE) non-corroding sealed enclosure |
| Crossover Frequency | 100Hz |
| Shipping Weight | 68 lbs (31kg) each |
| Satellite Dimensions | 6 1/2" L x 4 1/8" Dia. (165mm x 105mm) |
| Included Accessories | Eight ground stakes, 24 silicone filled wire nuts |
| Installation Best Practice | Placement Recommendations: Satellites- 6'-8' (1.8-2.4 meters) apart along perimeter of listening area. Woofer- The center of the eight satellites. Listening Area: Up to 2000 square feet. Wire Recommendations: 18 gauge up to 100' (33 meters) 4 conductor, stranded, direct burial 16 gauge up to 150' (50 meters) 4 conductor, stranded, direct burial 14 gauge up to 250' (80 meters) 4 conductor, stranded, direct burial 12 gauge up to 600' (192 meters) 4 conductor, stranded, direct burial Specifications subject to change. Direct burial cable required (sold separately). |
| Subwoofer Dimensions | 22" L x 15" Dia. x (559mm x 381mm) |
| Amp Dimensions (with feet) | 8 5/8"W x 2 1/8"H x 16 13/16"D (219mm x 54mm x 427mm) |
| Amp Dimensions (rack mounted) | 8 5/8"W x 1 3/4"H x 16 13/16"D (482mm x 44mm x 427mm) |
| Amp Output Power (8 Ohm) | 125 Watts RMS per channel (2 channels driven) |
| Amp Output Power (4 Ohm) | 200 Watts RMS per channel (2 channels driven) |
