REFERENCE 11.4 CHANNEL AV RECEIVER WITH 140W, 8K AND 7 HDMI INPUTS

Engineered with proprietary technology and crafted with premium materials for timeless style, CINEMA 30 redefines cinematic sound for superior home theater systems.



Achieve the Best Sound Possible

Dirac Live is a professional room acoustic solution that enables you to optimize your sound systems and reduce unwanted effects introduced by the room. Utilizing purpose-built audio algorithms, this world-class software is now available as an upgrade with CINEMA 30.



Sound For What You See

Listen and watch differently with the new Marantz CINEMA series. With artisanal craftsmanship, inspired design, and 70 years of innovation. This is cinematic sound, redefined. That means sound that’s better than the theaters, to reveal entertainment the way it’s meant to be heard. Bring home the sound of cinema.



Key Features

High Power & Low Distortion

Each channel is rated at 140W with 0.05% THD, making both powerful dynamics and subtle detail a reality.

11 Channels & Countless Configurations

Though 11 amplifier channels are built in, CINEMA 30 can process up to 13.4 channels, making the perfect speaker layout for your room easy to achieve.



No Compromise Engineering

HiFi performance technologies like HDAM SA-2 and more elevate the CINEMA 30 to performance levels seldom found in an AVR.

Sound Master Tuned & Calibrated For You

Powerful calibration and tuning tools are included, enabling you to get the best performance from your system.



Believe in Quality

Highly Customizable

Thoughtfully curated connectivity options, myriad speaker configurations, and room calibration capability allow you to make CINEMA 30 your own.



Timeless Yet Modern Style

Excellence is heard and seen. CINEMA 30 is meticulously crafted in Japan with authentic materials in a modern style, befitting its rich heritage and stunning performance.



Complete Compatibility

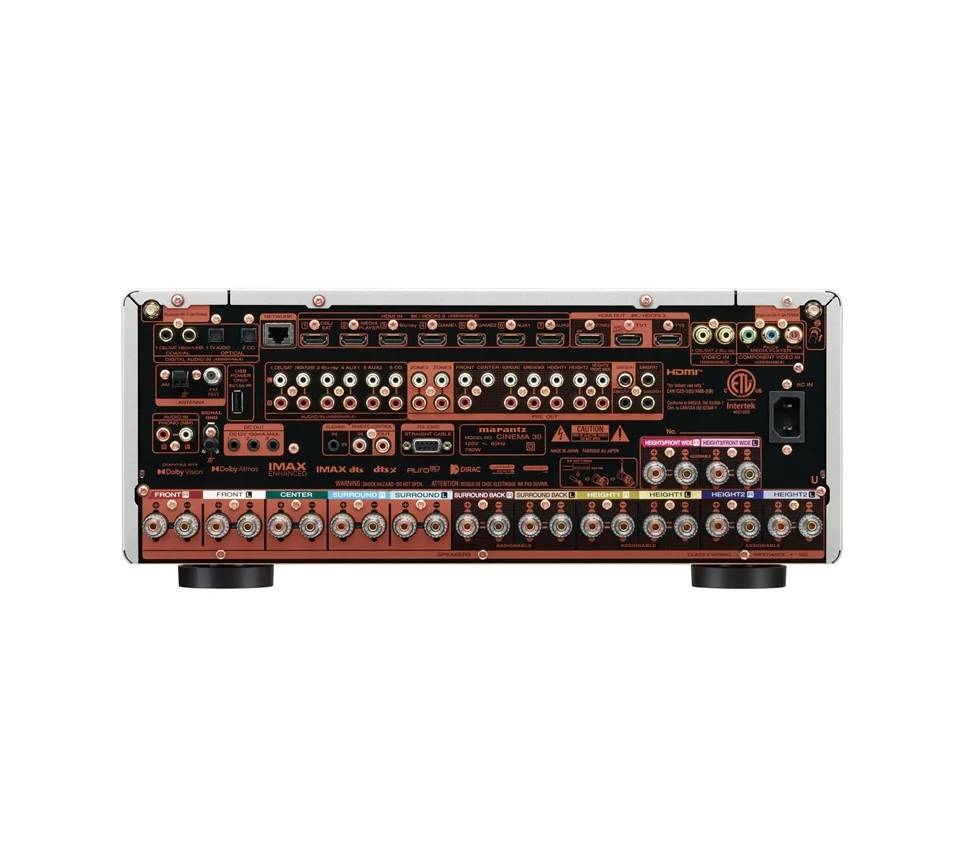

Seven HDMI inputs, plus digital, analog, and phono inputs – even analog video plus loudspeaker and pre-amp outputs – ensure connectivity to virtually any components you have.


HDMI
Total HDMI Inputs / No. Support 8K 6 / 3
HDCP2.3 support Yes
HDMI Outputs: Main / Zone 2 / 1
INPUTS/OUTPUTS
Multi-Room Video Out: Video / HDMI 7/3
analog In/out 6 / 0
Multichannel Pre Out Yes (13.4)
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes
FM Tuner with RDS Yes
DAB+ Tuner No
USB Audio Yes / No / No
Front Inputs USB-A
Multi-Room Speaker Terminal assignable
Speaker A / B assignable
7.1 multichannel input No
Number of Speaker Terminals 13
Multichannel Preamp Out 7.2
Subwoofer Out 4 (independent)
Multi-Room Out: analog / digital 2 / 0
Digital In: Optical / Coaxial 2 / 2
Phono (MM) In Yes
Analog In / Fixed Level Out 3 in / 0 out
Component In / Out 1 / 0
HDMI In / Out 7 / 3
Multi-Room Video Out via HDMI 0 / 0
MULTICHANNEL SURROUND TECHNOLOGIES
Auro 3D Yes
Audyssey DSX Yes
Multichannel Stereo Yes
INPUTS/OUTPUTS
Composite In / Out 2 / 0
MULTICHANNEL SURROUND TECHNOLOGIES
Max Number of Processing (Preamp) Channels 13.4
IMAX Enhanced Yes
Dolby Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
POWER AMPLIFIER
Bi-Amp Drive assignable
MULTICHANNEL SURROUND TECHNOLOGIES
DTS DTS HD Master, DTS:X, DTS:X Pro, DTS Neural:X, DTS Virtual:X
POWER AMPLIFIER
Current Feedback Topology yes
Amplifier Topology Class A/B
Discrete Power Amplifier Yes
70% Guarantee Yes
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 250 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 175 W
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) 140 W
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) -
Number of Powered Channels 11
HDMI
CEC Yes
HDMI Pass-Through in Standby Mode Yes
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
Variable Refresh Rate / Quick Frame Transport Yes / Yes / No
Video Dynamic Range HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
Audio Return Channel ARC, eARC
HDMI Upscaling 1080P/4K to 8K
Analog to HDMI Video Conversion No
Video Conversion Analog -> HDMI Yes
HDMI to HDMI Scaling 1080P/4K to 8K
HDMI Inputs: Back / Front 7 / -
Auto LipSync Yes
DSD Audio over HDMI No
Acoustic / Room Correction
Audyssey LFC Yes
PERFORMANCE TECHNOLOGIES
Clock Jitter Reducer Yes
Acoustic / Room Correction
Audyssey MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
PERFORMANCE TECHNOLOGIES
Gold Plated RCA Terminals Yes
Pure Direct Mode Yes
Hyper Dynamic Amplifier Modules (HDAM) (List version) Yes
HDMI
DSD Audio Capability Yes
PERFORMANCE TECHNOLOGIES
Copper Plated Chassis Yes
Toroidal Power Supply Transformer Yes
HDMI
4K Signal Pass-Through / Scaling / GUI Overlay o / o / o
8K signal pass-through / scaling / GUI overlay o / o / o
Variable Refresh Rate / Quick Flame Transport / Quick Media Switching Yes / Yes / No
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR Yes / Yes / Yes / Yes / Yes
HDMI 2.0: 3D / 4K / CEC / ARC Yes / Yes / Yes / Yes
HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB Yes / Yes
8K/60Hz AB / 4K/120Hz AB Pass-through In/Out 7 / 2 (up to 40Gbps)
Acoustic / Room Correction
Dirac Live Support Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
Bass Sync Yes
Dirac Live Upgradability Yes
MUSIC FILE SUPPORT
Lossy Formats MP3 / WMA / AAC
Lossless formats FLAC HD 192/24 / WAV 192/24 / ALAC 192/31
DSD Audio 2.8 MHz / 5.6 MHz
Gapless Playback FLAC, WAV ,ALAC ,DSD
Compressed Audio Enhancer: MDAX2 Yes
Network Audio Sharing Yes
STREAMING SERVICES
HEOS Multi-room and Streaming Yes
AirPlay Audio Streaming AirPlay2
Internet Radio TuneIn
Spotify*Spotify Connect
Pandora Yes
SiriusXM Yes
Other Streaming Services * Amazon Music HD/ Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix
Roon tested Yes
Network Connectivity
Ethernet Ports Yes
Wi-Fi (include version / band) Yes
Bluetooth (Include version) Yes
Bluetooth Re-transmit for Bluetooth headphones Yes
SMART HOME INTEGRATION AND CONTROL
Voice Assistant Compatibility Alexa / Google Voice Assistant / Apple HomePod
App for Smart Phones & Tablets (iOS & Android) Marantz AVR App
HEOS Multi-Room Integrated Yes
HEOS Link Compatibility: IR/ IP Yes /Yes
Multi-Room zones 2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog 2 Ch / 2 Ch / Yes / Yes
Zone Audio Output: Speaker / Preout Yes / Yes
Zone HDMI Output from HDMI Source Yes
Control Connectivity IP Control / RS232 Control / Web Control / App Control
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Output 3
HDMI Diagnostics Yes
OTHERS
Front Display 2 line FLD + port hole OLED
GUI Languages 3
Setup Assistant Yes
Smart Select on Remote Yes
Firmware Update by Network / USB Yes / Yes
ECO Mode Yes
Auto Power off Yes
Sleep Timer Yes
CEC Yes
Auto Speaker Setup by Microphone Audyssey MultEQ XT32Dirac Live (upgrade)
Graphic User Interface - GUI Modern HD GUIModern HD GUI
Smart Select Yes
GENERAL
Available Colors Black/Silver-Gold
Metal Front Panel Yes
System Remote Control RC-051SR
Power Consumption in W 780
Power Consumption No-Sound (ECO on/off) in W 65 W / 110 W
Standby Consumption in W 0.2
CEC Standby Consumption in W 0.5
Network Standby Consumption in W Less than 2.0
What's in the box Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, cardboard microphone stand, 2 External Detachable Antennas, AC cord
Weight in lbs. 42.8
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in inches
17.4 x 18.0 x 7.5
Antenna:Vertical :(W x D x H) in inches
(17.4 x 18.0 x 10.2)
W/o Antenna:(W x D x H) in inches【17.4 x 17.6 x 7.5】
Pre-Programmed / Learnable / LCD Display Yes / Yes / Yes
