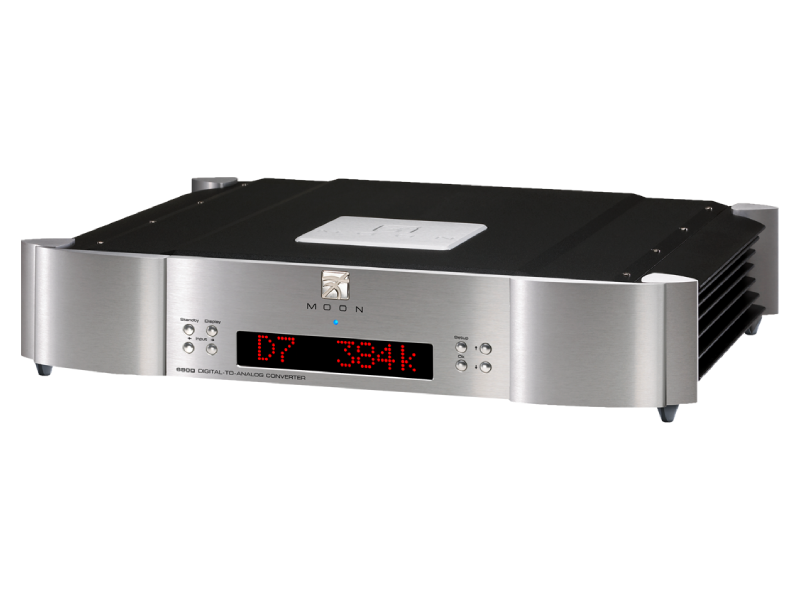

Moon by Simaudio Streaming DAC - 680D (S)

Moon by Simaudio Streaming Digital to Analog Converter - 680D (2-Tone)

Moon by Simaudio Streaming DAC - 680D (S)

FAST DELIVERY
Authorized Dealer
$13000 CAD / Each

Or as low as $361.11/month. Apply Now

Authorized Dealer
Free Shipping
$13000 CAD / Each
Call Now For Best Price (705) 445-1118

Or as low as $361.11/month. Apply Now

Authorized Dealer
$13000 CAD / Each

Or as low as $361.11/month. Apply Now


More options

Friendly, Personal, Professional Attention.
Expert, Sales, Service, Custom In-Home Installation, with On-Going Support at Guaranteed Low Prices! ….Since 1989!


Friendly, Personal, Professional Attention.
Expert, Sales, Service, Custom In-Home Installation, with On-Going Support at Guaranteed Low Prices! ….Since 1989!

Friendly, Personal, Professional Attention.
Expert, Sales, Service, Custom In-Home Installation, with On-Going Support at Guaranteed Low Prices! ….Since 1989!
Literature

MiND 2 streaming module

MiND 2 (MOON intelligent Network Device) is a fabulous way of streaming and listening to your music. The 680D is designed to deliver an outstanding high-resolution streaming experience through music services such as Spotify Connect, Tidal Masters, Qobuz Sublime+ and Deezer Hi-Fi. The DAC architecture supports PCM (up to 32-bit/384kHz), DSD (up to DSD256) and is MQA certified.

Roon Ready & full MQA decoding

The 680D is Roon Ready and allows the playback of all the most common file formats, including DSD, and MQA file formats via all inputs.

A Team Player

The 680D is the prodigal little brother of the 780D, and it is the best buddy of the 600i v2. Together, they form a great pair to recreate the best sound for your favourite music.

Design features

  • AirPlay 2 ,TIDAL Connect, Spotify Connect compatible
  • Roon Ready device
  • DSD and MQA decoding from all digital inputs
  • Tidal Masters, Deezer Hi-Fi and Qobuz Sublime+ Music Services
  • Multi-room synchronized playback

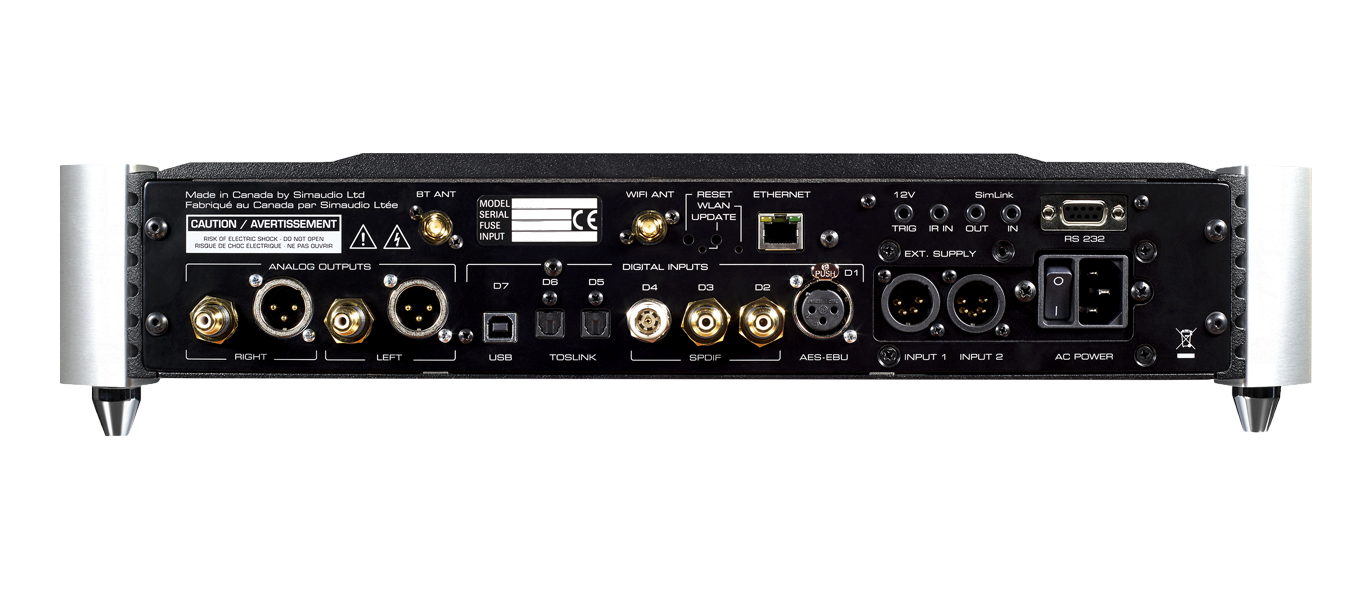

  • 9 digital inputs : USB, AES/EBU, SPDIF, Optical, Ethernet,Wi-Fi and aptXTM audio for Bluetooth®

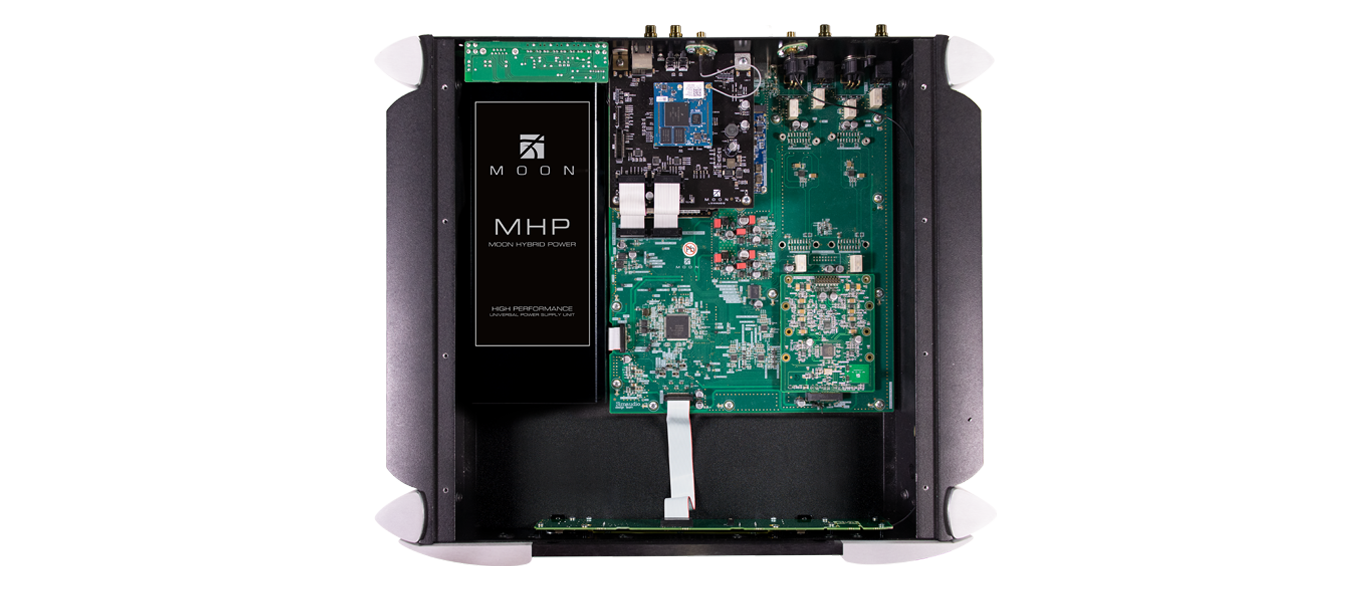

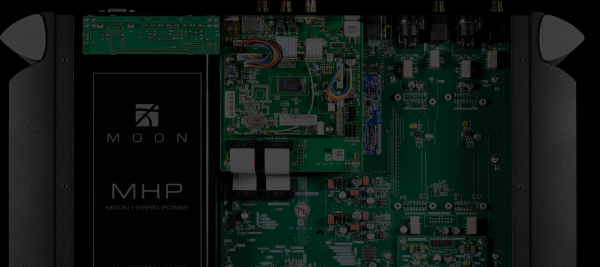

  • Power supply using new MOON Hybrid Power (MHP) for exceptionally stable, ultra low noise DC output
  • 12 stages of DC voltage regulation which includes 2 stages of M-LoVo (MOON Low Voltage Regulation) and 4 stages of i2DCf (Independant Inductive DC Filtering)
  • On-board programmable software for customization of the end-user interface

The following accessories should be included inside the box with your Digital-to-Analog Converter:

  • AC power cable
  • FRM-3 remote control with three ‘AAA’ batteries
  • ‘SimLink™’ cable with 1/8” mini plug terminations on each end
  • 2x Wi-Fi antenna
  • Owner’s manual
  • Warranty and product registration information (USA and Canada only)
Technical specifications
Frequency response (full range)2Hz - 100kHz +0/-3dB
THD @ 1kHz, 0dBFS (A-weighted)0.0005 %
Intermodulation distortion0.0003 %
Dynamic Range123 dB
Signal-to-noise Ratio123 dB @ full output
Channel Separation120 dB
Intrinsic Jitter1 pico seconds RMS
Analog Output @ 0dBFS2.0 V
Analog output impedance100 Ω
PCM Bit-depth range16 - 32 bits
PCM sampling frequency rates44.1 - 384 kHz
DSD sample ratesDSD64, DSD128 & DSD256
Shipping weight38 lb / 18 kg
Dimensions (width x height x depth)18.75 x 4.0 x 16.8 in / 47.6 x 10.2 x 42.7 cm
